CGS Hawk Arrow I
The Hawk Arrow I is an updated version of the Hawk Classic, incorporating features requested over the years.
Light Sport Aircraft
Hawk Arrow I

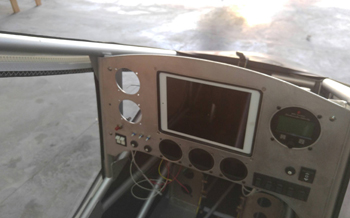

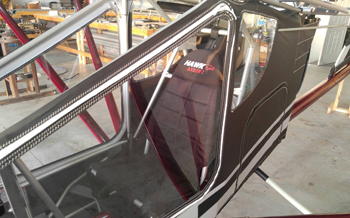

The nose section is longer and the angles downward steeper than that of the Hawk Classic. This allows for better forward visibility at low sun angles. Since the nose was made longer, the rudder and vertical stabilizer were enlarged to maintain the same excellent yaw stability of the Hawk classic. The tail boom was reinforced to handle the loades of this larger tail assembly.
The Arrow single seat wing has the same semi-symmetrical airfoil as the Arrow II, and streamlines extruded aluminum wing struts. It also includes the curved overhead and curved windshield giving it excellent flying characteristics.
Kit and option packages are quoted when you order. Availability is quoted when you order - we do not list prices on the site.
Numbers
Specifications — Hawk Arrow
- Empty Weight 330lbs
- Gross Weight 625 lbs
- Wing Span 28' 10"
- Wing Area 135 sq. ft
- Engine Size 40-65 hp
- Rate of Climb 800-1100 fpm
- Cruise Speed 55-75 mph
- Stall Speed 28-34 mph
- Vne 100 mph
- Assembly Time for First time Builder 200 hours

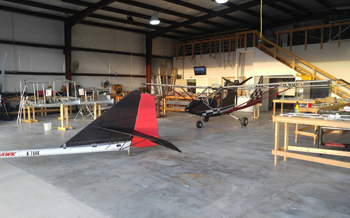

What’s in the box
Basic kit includes as standard equipment
- Airframe with curved windshield, sharper slope of nose for improved visibility
- 3-Position Wing Flaps (not flaperons)
- 3-Axis Control
- Full fuselage pilot surround (roll cage)
- Strengthened tail boom, and streamlined wing struts
- Shoulder Harness and seat belt
- Larger vertical stabilizer and rudder
- Heavy duty wings 2 ¼” dia. leading edge, 1 ¾ “ dia. trailing edge (FACTORY PRE BUILT)
- Curved overhead carry through increases head room by 3”
- All control surfaces (FACTORY PRE BUILT) (flaps, ailerons, rudder, vertical stab, horizontal stab, & elevator)
- Heavy duty fiberglass landing gear legs
- Your choice – tail dragger with steerable tail wheel or tricycle/steerable nosewheel
- Rough terrain wheels - 16" x 6.5" x 6"
- Streamlined Struts - aluminum
- Streamlined landing gear fairings
- 5 gallon fuel tank
- Anodized Tubing
Pricing
*All domestic kits shipped via truck line are subject to a crating charge per kit. Orders which are picked up at the factory are not subject to the crating charge
Colors
Covering Package & Colors
Includes your choice of either 3.8 oz. stabilized dacron covers or dope and fabric kit. Dacron covers include all control surfaces which are pre-sewn and ready to install, zipper doors, and full fuselage enclosure. Dope and fabric kit includes ribs, stringers, hard doors, fabric, and glue - everything but paint).
**There is no extra charge for ordering Dacron covers with solid colors. You can mix the solid colors as much as you like. (i.e. red wings, yellow ailerons, yellow flaps, black fuselage, etc.). Stripes and special logos are optional, and a layout diagram needs to be submitted for a quote. Color samples and layout diagrams are available upon request.
Power
Engine Packages* — Hawk Arrow
* Engine packages offered below are for combining with the above kit and covering packages only
** Due to the varying rate of the Euro against the US Dollar, all engine packages will be priced at the time written order is received. Ask via the contact form for current pricing.
Rotax 582 (65 h.p.) Engine Package:
Includes engine, radiator package, IVO three blade prop, electric start, throttle assembly, motor mounts, muffler mounts, miscellaneous hardware and brackets.
HKS 700E 4 Stroke (60 h.p.) Engine Package:
Includes engine, IVO two blade prop, throttle assembly, motor mounts, muffler mounts, miscellaneous hardware and brackets
After Market Only — Rotax 447 (40 h.p.) Engine Package:
Includes engine, electric start, IVO three blade prop, throttle assembly, motor mounts, muffler mounts, miscellaneous hardware, and brackets.
After Market Only — Rotax 503 (50 h.p.) Dual Carb Engine Package:
Includes engine, IVO two blade prop, throttle assembly, motor mounts, muffler mounts, miscellaneous hardware and brackets
Add-ons
Additional Options
- Trim Tab (in cockpit adjustable)
- Additional 5 gal Fuel Tank Option (for a total of 10 gals.)
- Brakes, mechanical
- Brakes, hydraulic O’Brien w/stick mounted master cylinder
- Brakes, hydraulic Hager w/stick mounted master cylinder, includes Hager wheels
- Wing/Tail folding Package
- Folding Tail Only
- Hard Doors for Single Place (2 doors) applies only to Dacron orders
- Map case in doors for storing sectionals, etc. (per door – cloth door only)
- Tinted Lexan Windows
BRS
Parachute Options for single Place Models
- BRS 600 (600 lbs.) Softpack
- BRS 600 (600 lbs.) Canister
- BRS 800 (800 lbs.) Softpack
- BRS 800 (800 lbs.) Canister
- Freight for parachute systems
More
Special Options
- Fast-build kit, requires only 100 hours to complete (for first time builder)
- Special crating for fast-build kit - Market
- Amphibious and standard Float Systems available.
- Wing tank kit, 10 gal total (5 gal per side) Includes 2 tanks, hoses, fittings,sump tank, mounting brackets, straps, etc.
- Wheel pants (pants only), Set of 3
- Wheel pants (pants only), Set of 2
- Wheel pants mounting kit
- Fiberglass Nose Cone-adds 3-4 mph to top speed, provides streamlined appearance
