Two-seater

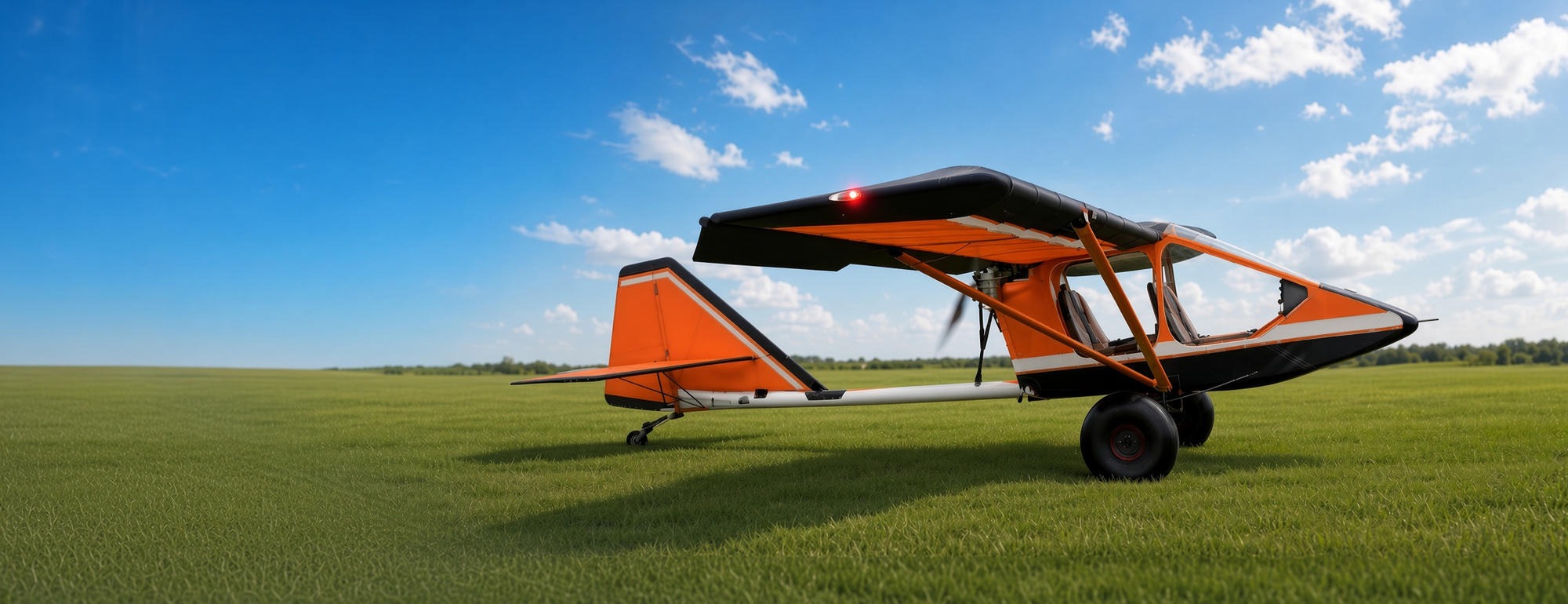

Arrow II Two-Seater Ultralight

The Hawk Arrow II is our two-seater offered as a factory build or in kit form, to be built as an Amateur-Built Experimental or ELSA aircraft in the U.S. or AULA in Canada and the rest of the World. The long streamlined cockpit area has a flat floor, and a low sloping windshield that gives unobstructed forward visibility. The large vertical tail balances the long nose, which yields excellent yaw stability. The Arrow II wing has a semi-symmetrical airfoil, and streamlined extruded aluminum wing struts. All Hawks incorporate a curved front spar carry-through, allowing for ample head room.

The rear seat is higher than the front seat, so the field of vision of the passenger or instructor in the rear seat is less obstructed. Flaps (not flaperons!) are standard equipment on all Hawks, and are very effective in increasing climb rate and decreasing landing distance. At the heart of the Hawk's unique design is its curved boom tube. The curved boom allows the horizontal stabilizer to be placed above the down-wash of the wing, especially when flaps are deployed. Another benefit of the curve is short landing gear legs, which makes it easier to get in and out of your plane. The curved boom is stronger in torsion than a straight boom, and allows the airplane to rotate for takeoffs and landings without banging the tail on the ground.

The Arrow II incorporates tandem seating rather than side by side. Advantages of tandem over side-by-side include:

Shoulder room is ample.
The front seat pilot sits in front of the wing, so there’s no wing blocking the view in turns.
Turns to the left or right are equally comfortable because you don't have to look across a seat.
The narrower fuselage allows better inflow to the pusher propeller, and much less drag.
Since the rear-seat passenger sits on the center of gravity, it makes little difference if you have a passenger or not - the center of gravity changes very little.
In a training situation, the student’s sight picture doesn’t change when the instructor gets out. Everything looks and feels the same as when the instructor was in the plane with him, except for higher performance. This keeps stress levels down when he’s finally flying solo.

Numbers

Specifications: Hawk Arrow II

Empty Weight 550 lbs - 249 kg
Gross Weight 1100 lbs
Wing Span 31' 6" - 9.6 m
Wing Area 147 sq. ft - 13.6 sq. m
Engine Rotax 912 UL, 80 hp
Rate of Climb 600-1200 fpm - 3-6.1 m/s
Cruise Speed 55-80 mph - 48-70 kts
Stall Speed 35-40 mph - 30-35 kts
Vne 110 mph - 95.58 kts
Assembly Time for First time Builder varies

What’s in the box

Quick Build Kit

The following is included as standard equipment in the Quick Build kit.

Airframe with curved windshield, sharper slope of nose for improved visibility
3-Position Wing Flaps
Dual 3-Axis Control
Full fuselage pilot surround (roll cage)
Strengthened tail boom, and streamlined wing struts
Heavy duty wings with 3” dia. leading edge and 2” dia. trailing edge
Shoulder Harnesses and seat belts
Larger vertical stabilizer and rudder
Heavy duty wings (FACTORY PRE BUILT)
Curved overhead carry through increases head room by 3”
All control surfaces (FACTORY PRE BUILT) (flaps, ailerons, rudder, vertical stab, horizontal stab, & elevator)
Heavy duty landing gear legs
Your choice – tail dragger with steerable tail wheel or tricycle/steerable nosewheel
Rough terrain wheels - 16" x 6.5" x 6"
Streamlined Struts - aluminum
Streamlined landing gear fairings
Fuel tanks
Fiberglass Nosecone
Anodized Tubing

*All domestic kits shipped via truck line are subject to a crating charge per kit. Orders which are picked up at the factory are not subject to the crating charge

ELSA, AULA includes wing tanks, elevator trim, and folding tail. Standard engine is the Rotax 912 UL (see Engine options). Basic instruments included. Dynon SkyView is standard on factory-built aircraft.

Fill the form to order this kit.

Factory-built

Ready To Fly

The Hawk Arrow II SLSA is our factory-built model, based on our proven popular CGS Hawk Arrow II. Since 1992 the Arrow II has been used for two place training and recreational flying. Now, with the Light Sport Aircraft rules in the U.S., our SLSA is a legal, economical option for flight training or fun flying.

Our Hawk Arrow II ELSA is the same airplane as the SLSA, except certified as an experimental aircraft. What this means is, while the aircraft cannot currently be used for compensation or hire (flight training), it can be delivered in any state of completion, from a full kit to a ready-to-fly craft. You can perform all your own maintenance, and you can also take a 16 hour class, and be certificated as a Light Sport Repairman with an Inspection rating. With this rating you can perform the condition inspections (annuals) yourself. If you’d like a new Hawk for recreational flying, but aren’t interested in building a full kit, and aren’t interested in paying someone else to perform the maintenance and annuals on your plane, this may be the Hawk for you.

As a point of comparison, our standard Hawk Arrow II is sold as an Experimental Amateur-Built kit. You are required to build at least 51% of the kit for your own recreation or education. After the plane has received its airworthiness certificate, you can do all the maintenance on the plane, and as the builder, you can be issued a maintenance certificate by FAA, which allows you to do the annual condition inspections yourself.

The ELSA/SLSA includes all standard equipment listed in the Quick Build kit plus the following:

Rotax 912 UL engine
Duc propeller
Dynon SkyView Avionics Package
Dual color sail coverings (basic scheme)

Fill the form to order SLSA/ELSA.

Bush ready

Tundra Package

The Tundra Package includes everything in the Ready To Fly package plus the following:

Upgraded brakes
Bush wheels/tires
Upgraded tailwheel

Fill the form to order Tundra Package.

Colors

Covering Package & Colors

Includes your choice of 4.0 oz. stabilized dacron covers. Dacron covers include all control surfaces which are pre sewn and ready to install, zipper doors, and full fuselage enclosure.

Covering Package for Two Place Arrow (INCLUDED IN ELSA/AULA)

There is no extra charge for ordering Dacron covers with 2 solid covers. You can mix the solid colors as much as you like. (i.e. red wings, yellow ailerons, yellow flaps, red fuselage, etc.). Stripes and special logos are optional, and a layout diagram needs to be submitted for a quote. Color samples and layout diagrams are available upon request.

Int. Orange
Neon Yellow
Lime
Yellow
West Coast Gold
Pink
Fuchsia
Purple
Mint Green
Turquoise
Blue
Royal Blue
Red
Black
Grey
White

Power

Engine options

We set engine pricing when the written order comes in. Ask through the contact form.

The standard engine is the Rotax 912 UL (80 hp).

Viking 90, Aero 1000, and Rotax 582 are supported. Contact Us

Panel

Avionics

The Dynon SkyView avionics package is standard on all factory-built aircraft.

Add-ons

Additional Options

Trim Tab (in cockpit adjustable)
Additional fuel tank options
Hydraulic Brakes
Map case in doors for storing sectionals, etc.
Tinted Lexan Windows
Ballistic parachute options are available.
Special crating for quick-built kit
Amphibious and standard float system available

Fill out the form to ask a question.
